Belec Compact Port HLC

Reliable Results On-Site!

Discover the future of mobile quality control with the revolutionary Belec Compact Port HLC!

The Belec Compact Port HLC (Hybrid Low Carbon) is the World's only Portable Hybrid Spectrometer for Metal Analysis for perfect Analysis of Carbon combined with ultimate Flexibility , realized by our latest 6GSO-System.

Until now, highly precise carbon analysis could only be guaranteed by complex laboratory spectrometers. From now on, you can benefit for this capability directly on-site, thanks to the unique design of our Belec Compact Port HLC. Developed by our experienced engineers, this spectrometer combines flexibility with the highest precision and accuracy.

Analysis anywhere and anytime with our mobile spectrometer.

The high-quality digital sensors cover the entire spectral range, allowing for the least compromises for line selection. At the same time, the analogue detectors for specific elements, such as carbon, offer unparalleled performance with unbeatable detection limits and accuracy. Thanks to its compact and robust design, Belec spectrometers are the perfect solution for applications requiring both mobility and accuracy.

To Inquiry

Product features

  • high performance ability due to the latest 6GSO System (6th Generation Spectrometer Optic System)
  • latest state-of-the-art detectors, developed for spectroscopy application
  • easy handling
  • mobility by trolley
  • easy transportation
  • user friendly Software Belec Win 21
  • analysis of C, P & S with Argon Probe
  • analysis of Nitrogen in Duplex steels, optional
  • quick mix-up checking with Air Sparking Probe
  • high accuracies (C from 0.003%)
  • connectable Measuring Stand
  • adapters for almost all kinds of sample shapes and sizes available
  • installation and instruction by qualified Belec personnel

Download brochure

Technical Specifications

  • Spectrometer in Paschen-Runge mounting, using the latest 6GSO-System (6th Generation Spectrometer Optic System)
  • Rowland circle diameter 300 mm
  • Usable wavelengths 145-410 nm
  • Zeiss-Grating with 3600 lines/mm
  • Reciprocal dispersion 0.9 nm/mm (1st order)
  • Shock resistance
  • Temperature stabilized detectors with wavelength depending configured entrance window (US-licensed)
  • High-speed photomultipliers for perfect carbon analysis and determination of h-and l-alloyed steels
  • Integrated noise compensation
  • Argon-flushed sparking probe for exact analysis, including C, P, and S. N optional
  • Argon flow 0.1 l / min in standby and 2.5 l / min during analysis
  • Argon control on probe plug, independent from instrument
  • Air probe for quick mix-up checking
  • Adapters for wires, pipes and small parts available for all probes
  • Lightweight shockproof plastic probe housing
  • Start and clear buttons easily hand-operated
  • Signal on mix-up identification: visual display for “repeat” and “reject”, start button is blocked until confirm button is pressed
  • Multi fibre quartz optics, standard lengths 3m to 8m, optional
  • Low-wear tungsten electrode
  • Silver electrode for air probe
  • Probe connector system
  • adapters available for different sample types as wires, tubes or small parts
  • customized adapters on demand
  • Sparking generator with maximum 400 Hz frequency
  • Unipolar discharge
  • Separate parameter for pre-sparking and integration selectable via software
  • Ignition frequency program specifically selectable via software
  • Discharge parameters specifically selectable via software
  • Arc source for air probe, optional
  • Ignition voltage 20 kV
  • Temperature stabilization, at 0.1°C exact
  • Separate AD- converter board for each detector, mounted on multi channel board, coupled by high-speed USB port
  • Integrated noise suppression
  • integrated background compensation
  • Unlimited numbers of measuring channels, configurable for several bases
  • Width 16.5 in. (420 mm)
  • Height 7.9 in. (200 mm)
  • Depth 19.3 in. (490 mm)
  • Analysis unit 37.5 lbs. (17,00 kg)
  • Argon Probe 2.9 lbs. (1,30 kg)
  • Argon Probe UV 3.9 lbs (1,75 kg)
  • Air Probe 1.8 lbs. (0,80 kg)

* handheld weight

  • 230V/50Hz or 110V/60Hz
  • 100W in stand-by mode
  • 600W during analysis
  • System-integrated industrial computer system with Intel© ATOM® dual core D525 (1.8 GHz, 64 Bit) processor
  • Random access memory 4 GB DDR3 SD RAM
  • Hard disk 250GB SATA SSD.M2 (Solid-State-Drive)
  • Intel© Onboard graphic with VGA output
  • 10.4” TFT colour display
  • Touch screen
  • Special dust and moisture protected keyboard integrated in hinged lid
  • USB 2.0 port
  • Ethernet interface RJ 45, 1 Gigabit Ethernet Controller
  • Internal serial interface, external port as option
  • Operation system MS Windows© 10 Enterprise LTSC with client specific regional and language settings
  • Remote-Service-System (RSS) by Teamviewer©

Belec WIN 21 Analysis and Quality Control Program

  • Belec WIN 21 analysis and quality control program
  • display of analysis values at each measurement
  • as many analysis programs to customer specifications as required
  • individual analysis parameters for each program
  • automatic program selection (APF) optional
  • analysis computation with: background correction, curve position correction, additive and multiplicative inter-element correction
  • automatic correction with standard types
  • easy and simultaneous recalibration of several programs (BGR)
  • mix-up checking by comparison with reference measurement
  • grade checking by comparison with analysis regulations
  • type calibration and type measurement
  • tolerances for every analysis program and element in absolute and relative weight percentages, individually adjustable
  • average and standard deviation from chosen measurements
  • warning signal, when calibration curve is exceeded
  • automatic reminder on regular recalibration
  • automatic display of alloy description or material number
  • Integrated, dynamic alloy database, 100.000 alloy data and more storable (only limited by computer storage capacity)
  • text size on monitor variable for optimum legibility
  • protocol storage function
  • report memory function for later analysis, printing and archiving
  • several statistic functions with graphical representation

The Belec Compact Port HLC in use

The smallest spectrometer of its kind

The Belec Compact Port HLC spectrometer offers a variety of application possibilities. Whether it is used for measurings in production areas, on pipes in construction sites or on scrap yards - moving from one application to another is no problem for the instrument with its heat-stabilised climatic chamber. Furthermore, only one person is needed for transport and operation of the equipment.

High-precision Analysis and quick Mix-Up Check

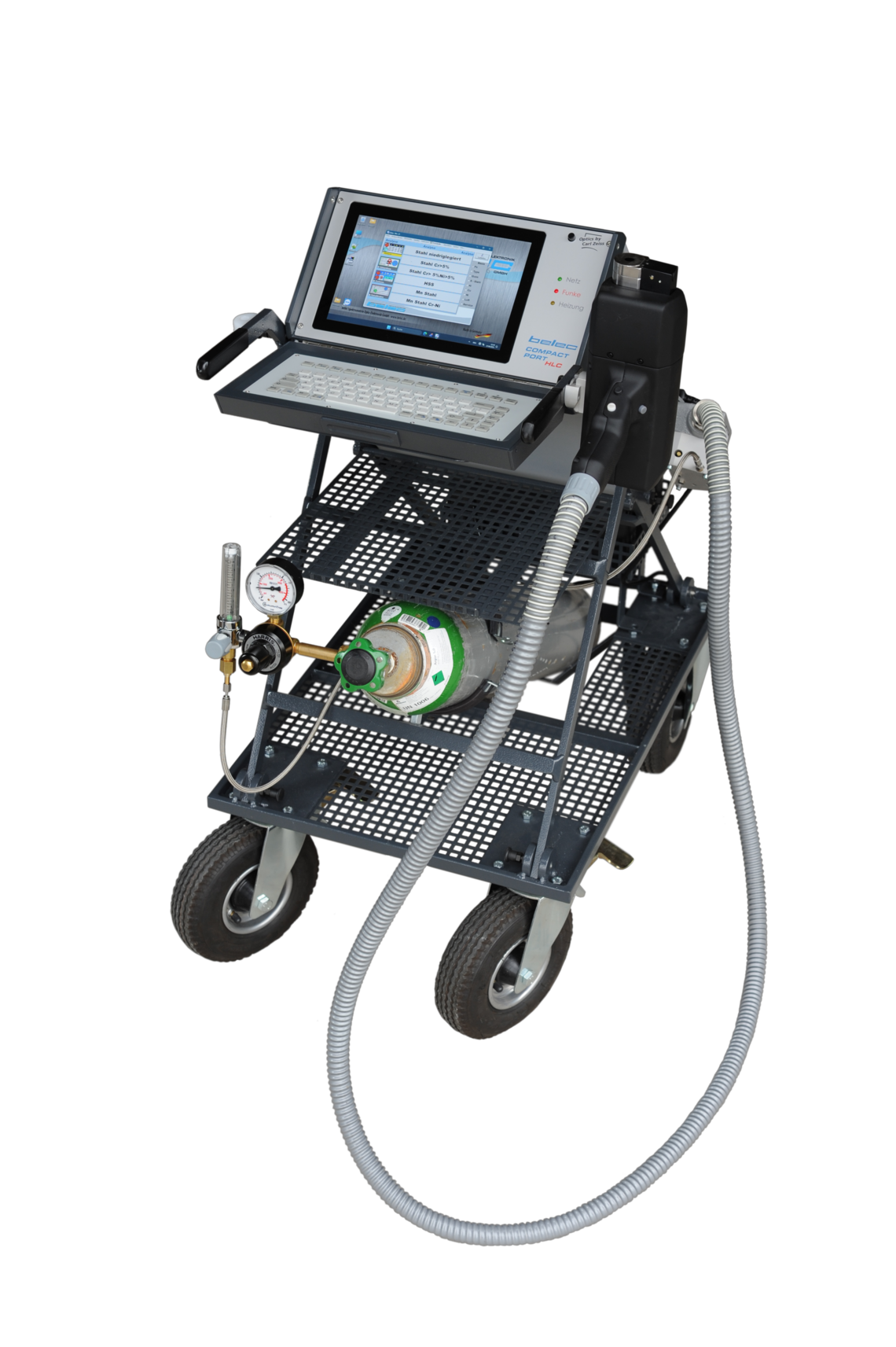

Every type of probes is especially designed for an appropriate use. For each analysis assignment you have the most suitable equipment at your disposal. Your high-precision analytical apparatus can be converted into a quick mix-up checking instrument in no time. Together with a device for an argon bottle, storage for samples or grinder, the spectrometer turns into a mobile laboratory on an adequate trolley. Due to the ergonomically designed construction a comfortable operation of the equipment is granted.

Accessories of belec Compact Port HLC

Belec offers a number of accessories, both for mobile use at different places and localized use of the stationary instruments.

Whether sparking probes for mobile use with the Belec Compact Port HLC or in addition to the sparking table of the Belec Vario Lab - get to know more about our additional solutions for your individual requirements.

A number of adapters allow the testing of most different sample types as wires, tubes or other small parts. Due to especially developed adapters they can be analysed without any problems.

Furthermore, we offer our customers other solutions which exactly match with their applications.
