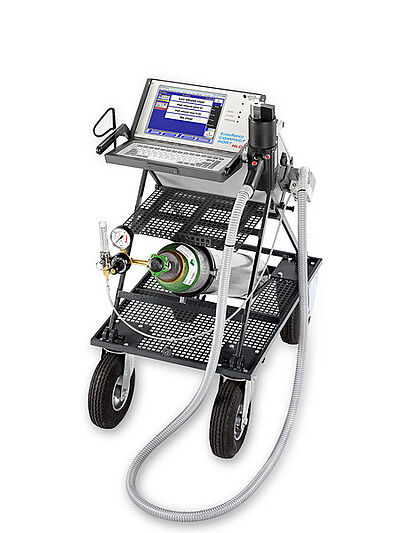

Belec Compact Port HLC

Reliable Results On-Site!

Discover the future of mobile quality control with the revolutionary Belec Compact Port HLC!

The Belec Compact Port HLC (Hybrid Low Carbon) is the World's only Portable Hybrid Spectrometer for Metal Analysis for perfect Analysis of Carbon combined with ultimate Flexibility , realized by our latest 6GSO-System.

Until now, highly precise carbon analysis could only be guaranteed by complex laboratory spectrometers. From now on, you can benefit for this capability directly on-site, thanks to the unique design of our Belec Compact Port HLC. Developed by our experienced engineers, this spectrometer combines flexibility with the highest precision and accuracy.

Analysis anywhere and anytime with our mobile spectrometer.

The high-quality digital sensors cover the entire spectral range, allowing for the least compromises for line selection. At the same time, the analogue detectors for specific elements, such as carbon, offer unparalleled performance with unbeatable detection limits and accuracy. Thanks to its compact and robust design, Belec spectrometers are the perfect solution for applications requiring both mobility and accuracy.

To Inquiry

Product features

high performance ability due to the latest 6GSO System (6th Generation Spectrometer Optic System)
latest state-of-the-art detectors, developed for spectroscopy application
easy handling
mobility by trolley
easy transportation
user friendly Software Belec Win 21
analysis of C, P & S with Argon Probe
analysis of Nitrogen in Duplex steels, optional
quick mix-up checking with Air Sparking Probe
high accuracies (C from 0.003%)
connectable Measuring Stand
adapters for almost all kinds of sample shapes and sizes available
installation and instruction by qualified Belec personnel

Download brochure

Technical Specifications

Optic

Spectrometer in Paschen-Runge mounting, using the latest 6GSO-System (6th Generation Spectrometer Optic System)
Rowland circle diameter 300 mm
Usable wavelengths 145-410 nm
Zeiss-Grating with 3600 lines/mm
Reciprocal dispersion 0.9 nm/mm (1st order)
Shock resistance
Temperature stabilized detectors with wavelength depending configured entrance window (US-licensed)
High-speed photomultipliers for perfect carbon analysis and determination of h-and l-alloyed steels
Integrated noise compensation

Sparking Probes

Argon-flushed sparking probe for exact analysis, including C, P, and S. N optional
Argon flow 0.1 l / min in standby and 2.5 l / min during analysis
Argon control on probe plug, independent from instrument
Air probe for quick mix-up checking
Adapters for wires, pipes and small parts available for all probes
Lightweight shockproof plastic probe housing
Start and clear buttons easily hand-operated
Signal on mix-up identification: visual display for “repeat” and “reject”, start button is blocked until confirm button is pressed
Multi fibre quartz optics, standard lengths 3m to 8m, optional
Low-wear tungsten electrode
Silver electrode for air probe
Probe connector system
adapters available for different sample types as wires, tubes or small parts
customized adapters on demand

Source

Sparking generator with maximum 400 Hz frequency
Unipolar discharge
Separate parameter for pre-sparking and integration selectable via software
Ignition frequency program specifically selectable via software
Discharge parameters specifically selectable via software
Arc source for air probe, optional
Ignition voltage 20 kV

Electronics

Temperature stabilization, at 0.1°C exact
Separate AD- converter board for each detector, mounted on multi channel board, coupled by high-speed USB port
Integrated noise suppression
integrated background compensation
Unlimited numbers of measuring channels, configurable for several bases

Dimensions

Width 16.5 in. (420 mm)
Height 7.9 in. (200 mm)
Depth 19.3 in. (490 mm)

Weight

Analysis unit 37.5 lbs. (17,00 kg)
Argon Probe 2.9 lbs. (1,30 kg)
Argon Probe UV 3.9 lbs (1,75 kg)
Air Probe 1.8 lbs. (0,80 kg)

* handheld weight

Power Supply

230V/50Hz or 110V/60Hz
100W in stand-by mode
600W during analysis

Computer Hardware

System-integrated industrial computer system with Intel© ATOM® dual core D525 (1.8 GHz, 64 Bit) processor
Random access memory 4 GB DDR3 SD RAM
Hard disk 250GB SATA SSD.M2 (Solid-State-Drive)
Intel© Onboard graphic with VGA output
10.4” TFT colour display
Touch screen
Special dust and moisture protected keyboard integrated in hinged lid
USB 2.0 port
Ethernet interface RJ 45, 1 Gigabit Ethernet Controller
Internal serial interface, external port as option
Operation system MS Windows© 10 Enterprise LTSC with client specific regional and language settings
Remote-Service-System (RSS) by Teamviewer©

Belec WIN 21 Analysis and Quality Control Program

Software

Belec WIN 21 analysis and quality control program
display of analysis values at each measurement
as many analysis programs to customer specifications as required
individual analysis parameters for each program
automatic program selection (APF) optional
analysis computation with: background correction, curve position correction, additive and multiplicative inter-element correction
automatic correction with standard types
easy and simultaneous recalibration of several programs (BGR)
mix-up checking by comparison with reference measurement
grade checking by comparison with analysis regulations
type calibration and type measurement
tolerances for every analysis program and element in absolute and relative weight percentages, individually adjustable
average and standard deviation from chosen measurements
warning signal, when calibration curve is exceeded
automatic reminder on regular recalibration
automatic display of alloy description or material number
Integrated, dynamic alloy database, 100.000 alloy data and more storable (only limited by computer storage capacity)
text size on monitor variable for optimum legibility
protocol storage function
report memory function for later analysis, printing and archiving
several statistic functions with graphical representation

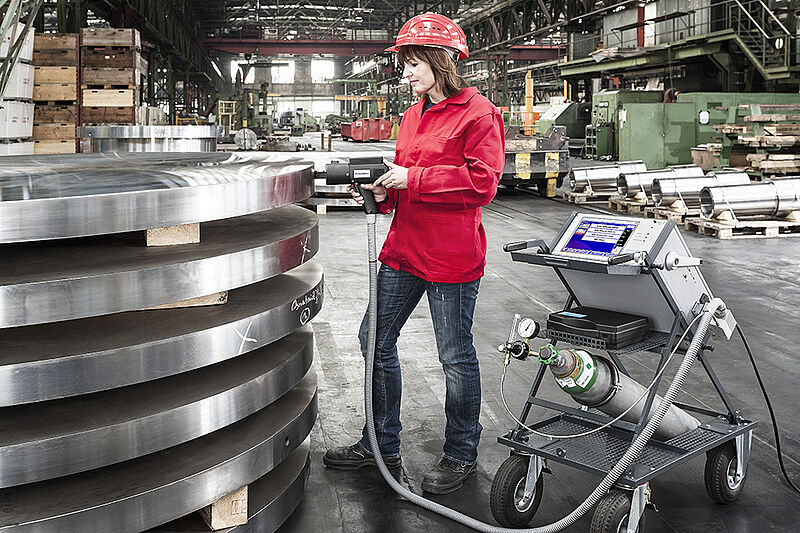

The Belec Compact Port HLC in use

The smallest spectrometer of its kind

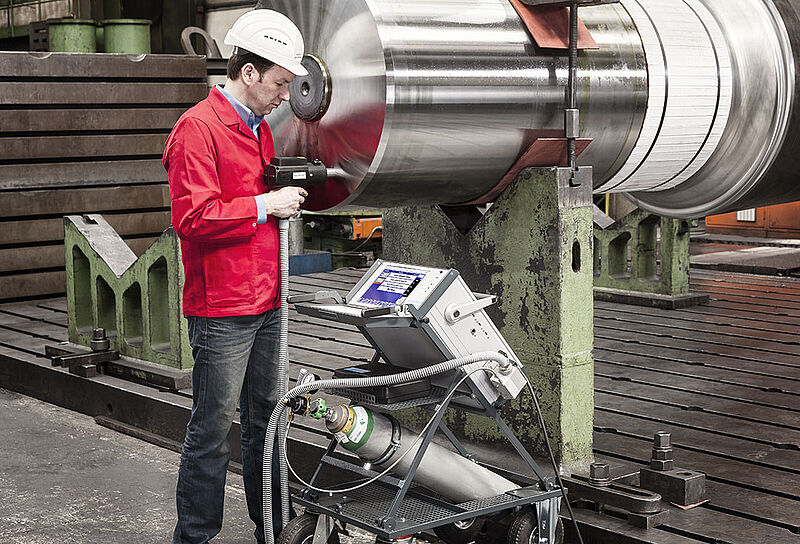

The Belec Compact Port HLC spectrometer offers a variety of application possibilities. Whether it is used for measurings in production areas, on pipes in construction sites or on scrap yards - moving from one application to another is no problem for the instrument with its heat-stabilised climatic chamber. Furthermore, only one person is needed for transport and operation of the equipment.

[Translate to Englisch:] Anwendungsbeispiel Belec Compact Port HLC

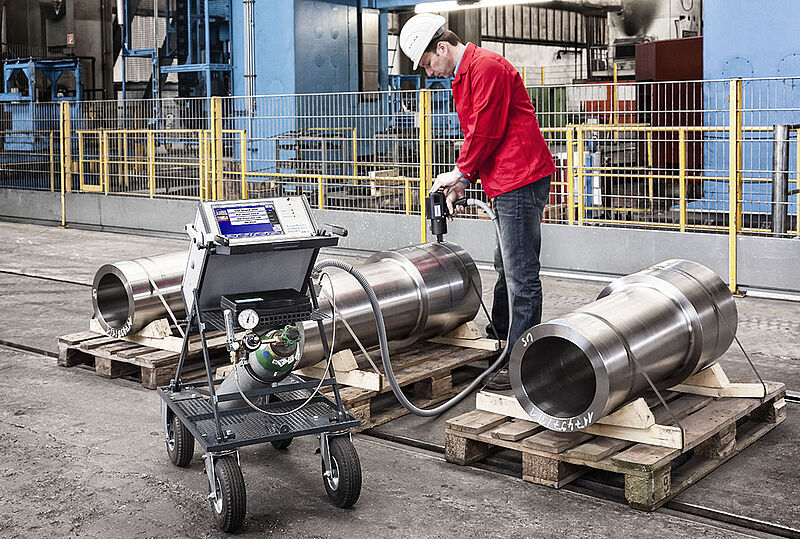

High-precision Analysis and quick Mix-Up Check

Every type of probes is especially designed for an appropriate use. For each analysis assignment you have the most suitable equipment at your disposal. Your high-precision analytical apparatus can be converted into a quick mix-up checking instrument in no time. Together with a device for an argon bottle, storage for samples or grinder, the spectrometer turns into a mobile laboratory on an adequate trolley. Due to the ergonomically designed construction a comfortable operation of the equipment is granted.

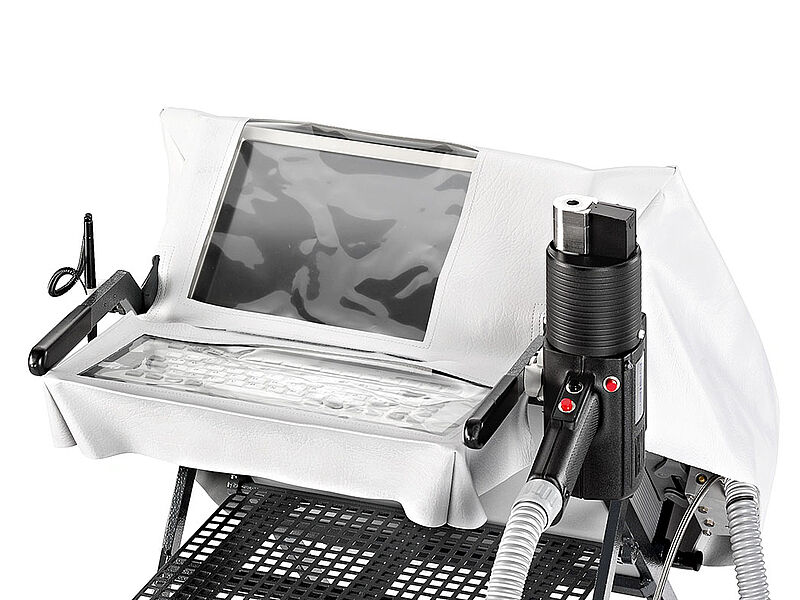

Accessories of belec Compact Port HLC

Belec offers a number of accessories, both for mobile use at different places and localized use of the stationary instruments.

Whether sparking probes for mobile use with the Belec Compact Port HLC or in addition to the sparking table of the Belec Vario Lab - get to know more about our additional solutions for your individual requirements.

A number of adapters allow the testing of most different sample types as wires, tubes or other small parts. Due to especially developed adapters they can be analysed without any problems.

Furthermore, we offer our customers other solutions which exactly match with their applications.
